Designing and 3D Printing 15mm Fantasy Bases and Movement Trays

I have been loving Tinkercad and I needed a solution for my 15mm Fantasy basing woes.  I have designed a prototype that I think I am going to stick with.  I haven't glued the figures to their bases yet but will most likely go ahead with this prototype and it will be the standard for my 15mm basing.

I predominantly want to do 15mm Fantasy for dungeon crawling however I do like the idea of using them in other systems and they look awesome in Rank and File.

3D Fantasy Movement Tray
The prototype in its full glory! Pretty stocked with this!

First off I designed a base in Tinkercad that would accommodate a Ral Partha figure and a 1mm magnet.  The Ral Partha troops are around 10mm in diameter with their included base.  The figure will "sink" into the base with room for a 1mm magnet underneath it. The dimensions of the base are 12mm x 12mm x 2mm.  The 10mm hole for the figure is 1mm deep and the hole for the 2mm x 1mm magnet is 1mm deep.

15mm fantasy base
Prototype base for Ral Partha 15mm Fantasy figures

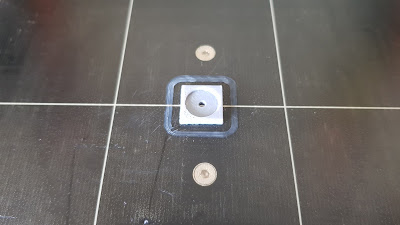

I then printed it off and everything came out nicely.  My printer does need a little fine tuning.

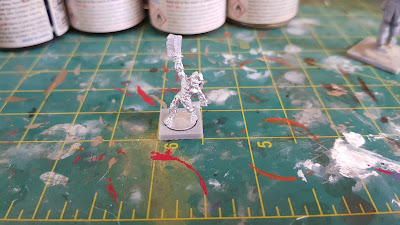

I used a zombie to test it, worked out very nicely

I then needed to design a movement tray.  I am completely unfamiliar with massed battles and movement tray sizes for 15mm. I wanted to start off with a 4 x 2 tray and came up with the following.

The prototype movement tray

The dimensions for the tray are: 51.5mm x 25.9mm x 3mm.  This will allow the figure on its base to fit nice and flush and allow a 2mm x 1mm magnet to drop int.  The walls dividing the figures are 0.3mm in width!

I did a test print which came out well except I need to tune my printer slightly.

3D printed fantasy movement tray
Needed a little clean up but design checks out!
I made the holes for the magnets slightly bigger than 2mm to allow a little extra room however I found I don't need it as I tweaked with my slicer settings.

The magnets were slightly loose but this will be an easy fix in Tinkercad.  They were glued in.

I was pretty impressed how this turned out.  I decided to put my skeletons into the bases and everything checked out!

They fit nicely and provide great stability for my 3D printed dungeon

Rank and file looks awesome

12mm x 12mm base size feels just about right

What's next?

Once I get some feedback from the internet I will adjust the design and go from there.  I am already thinking the 12mm base is almost perfect in size, as it provides great stability and isn't too big.  Any smaller probably wouldn't work.  I need to tighten up the holes for the magnets as my slicer and 3D printer are super accurate!  I am not limited to 4 x 2, any combination is possible.  I just need to improve my skills in Tinkercad to churn out the movement trays.

Once I am happy with everything these will be released on thingiverse.
